HYTORC Washer Specs. & Technical Data

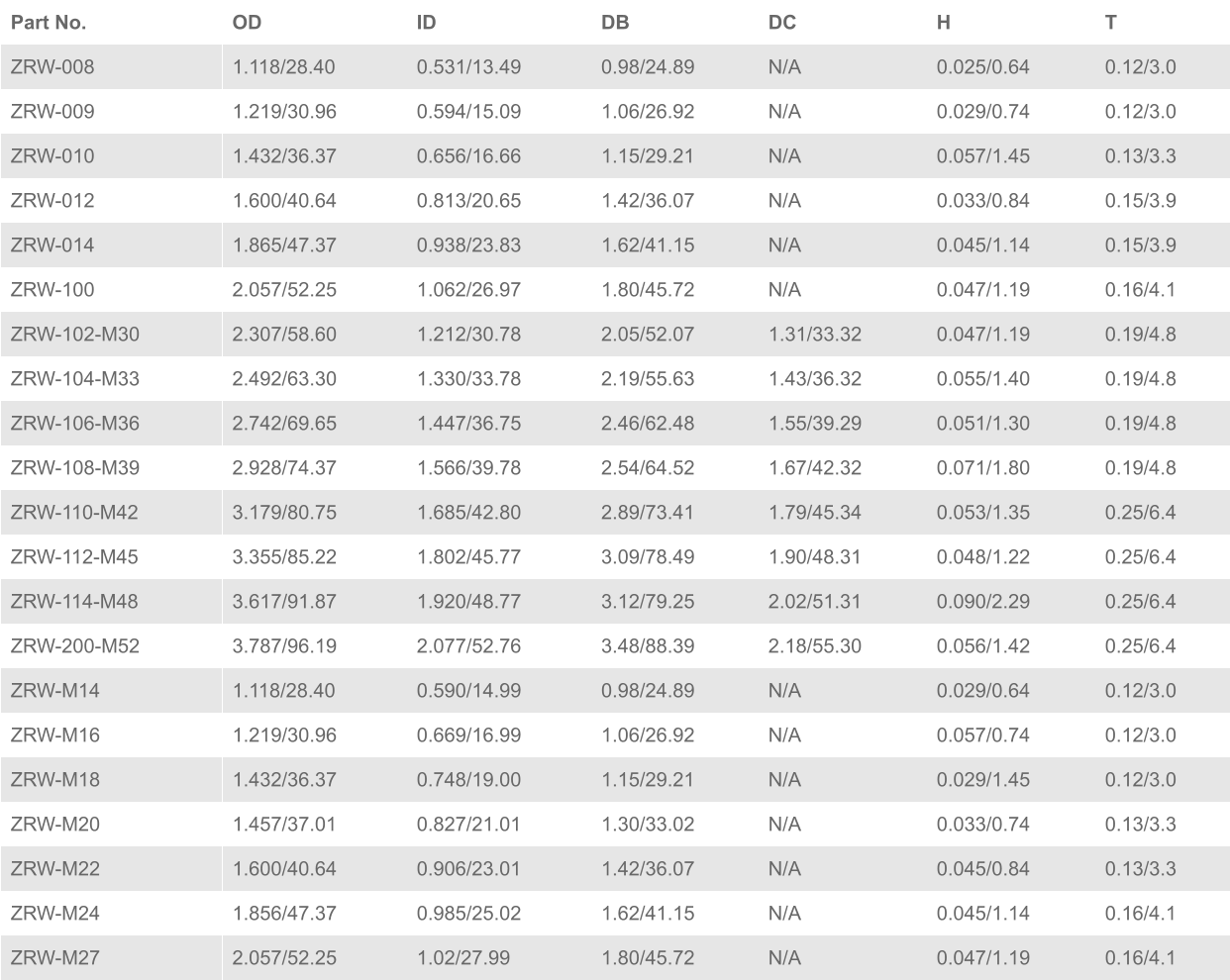

Part No. OD ID DB DC H T ZRW-008 1.118/28.40 0.531/13.49 0.98/24.89 N/A 0.025/0.64 0.12/3.0 ZRW-009 1.219/30.96 0.594/15.09 1.06/26.92 N/A 0.029/0.74 0.12/3.0 ZRW-010 1.432/36.37 0.656/16.66 1.15/29.21 N/A 0.057/1.45 0.13/3.3 ZRW-012 1.600/40.64 0.813/20.65 1.42/36.07 N/A 0.033/0.84 0.15/3.9 ZRW-014 1.865/47.37 0.938/23.83 1.62/41.15 N/A 0.045/1.14 0.15/3.9 ZRW-100 2.057/52.25 1.062/26.97 1.80/45.72 N/A 0.047/1.19 0.16/4.1 ZRW-102-M30 2.307/58.60 1.212/30.78 2.05/52.07 1.31/33.32 0.047/1.19 0.19/4.8 ZRW-104-M33 2.492/63.30 1.330/33.78 2.19/55.63 1.43/36.32 0.055/1.40 0.19/4.8 ZRW-106-M36 2.742/69.65 1.447/36.75 2.46/62.48 1.55/39.29 0.051/1.30 0.19/4.8 ZRW-108-M39 2.928/74.37 1.566/39.78 2.54/64.52 1.67/42.32 0.071/1.80 0.19/4.8 ZRW-110-M42 3.179/80.75 1.685/42.80 2.89/73.41 1.79/45.34 0.053/1.35 0.25/6.4 ZRW-112-M45 3.355/85.22 1.802/45.77 3.09/78.49 1.90/48.31 0.048/1.22 0.25/6.4 ZRW-114-M48 3.617/91.87 1.920/48.77 3.12/79.25 2.02/51.31 0.090/2.29 0.25/6.4 ZRW-200-M52 3.787/96.19 2.077/52.76 3.48/88.39 2.18/55.30 0.056/1.42 0.25/6.4 ZRW-M14 1.118/28.40 0.590/14.99 0.98/24.89 N/A 0.029/0.64 0.12/3.0 ZRW-M16 1.219/30.96 0.669/16.99 1.06/26.92 N/A 0.057/0.74 0.12/3.0 ZRW-M18 1.432/36.37 0.748/19.00 1.15/29.21 N/A 0.029/1.45 0.12/3.0 ZRW-M20 1.457/37.01 0.827/21.01 1.30/33.02 N/A 0.033/0.74 0.13/3.3 ZRW-M22 1.600/40.64 0.906/23.01 1.42/36.07 N/A 0.045/0.84 0.13/3.3 ZRW-M24 1.856/47.37 0.985/25.02 1.62/41.15 N/A 0.045/1.14 0.16/4.1 ZRW-M27 2.057/52.25 1.02/27.99 1.80/45.72 N/A 0.047/1.19 0.16/4.1
